Li-MnO2 Coin Battery Low Temperature Type
3.0 Volt - Primary / Non-Rechargeable Battery
-Improved Working Performance in Low Temperature :-40oC ~ +80oC
Main Features
- Battery Chemistry : Lithium/Manganese Dioxide (LiMnO2) Battery
- Non-Rechargeable Cell
- CR Primary Lithium Button Cell
- High cell voltage (3V)
- Small size and light weight
- Optimum for Memory and RTC Backup
- Applicable in a wide range of temperatures
- Extended Temperature Version optional
- Ability to provide a variety of laser welded terminals
*Battery performance will vary depending on conditions such as power consumption, usage pattern, voltage limitation, and environmental temperature.
Main Applications
- PC boards
- Watches
- Communication Tags
- Keyless Entry Systems
- Electronic Meters (Water,Gas,Electricity)
- Remote Controllers
- FA Instruments (Measuring Instruments,Onboard Microcomputers,Sensors)
- Medical Devices
- Sensors
For different applications, battery cells can be assembled with various types of battery terminations pins, such as PC pins, SMD mounts, connected with cable and connectors, and custom design battery pack according to customers’ design configurations.
| Model | Size | Weight | Voltage | Capacity | Action | |
|---|---|---|---|---|---|---|
|

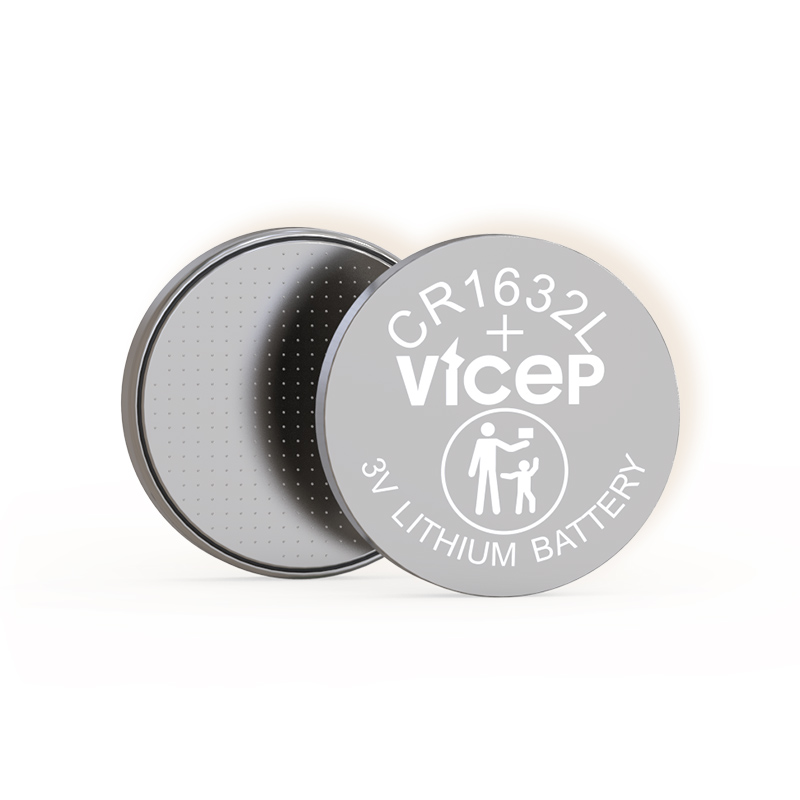

CR1632L |
Coin, 16.0mm | 2 g | 3.0 V | 120 mAh | |
|

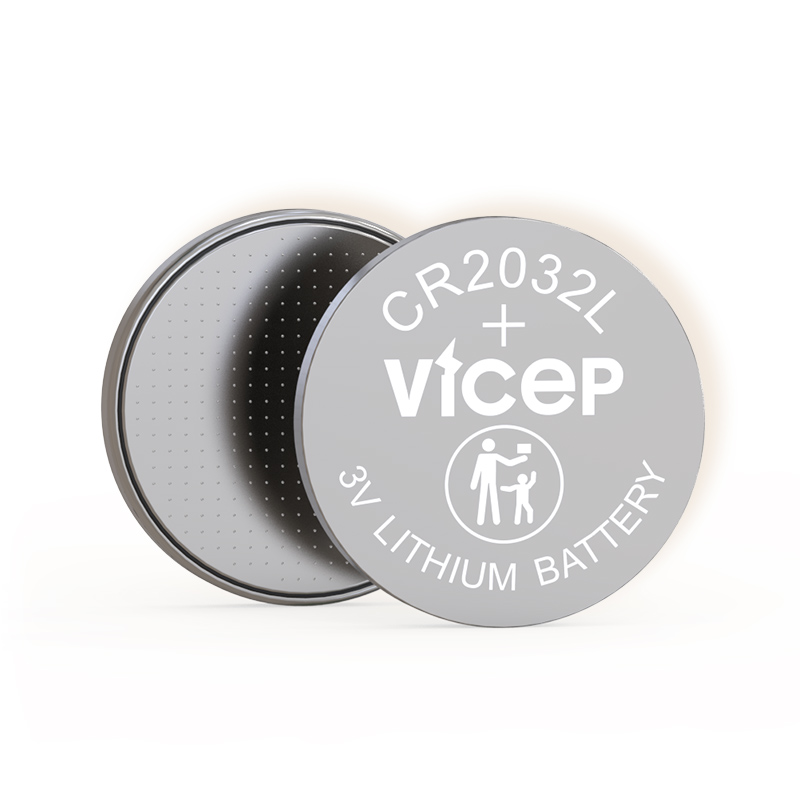

CR2032L |
Coin, 20.0mm | 3 g | 3.0 V | 210 mAh | |
|

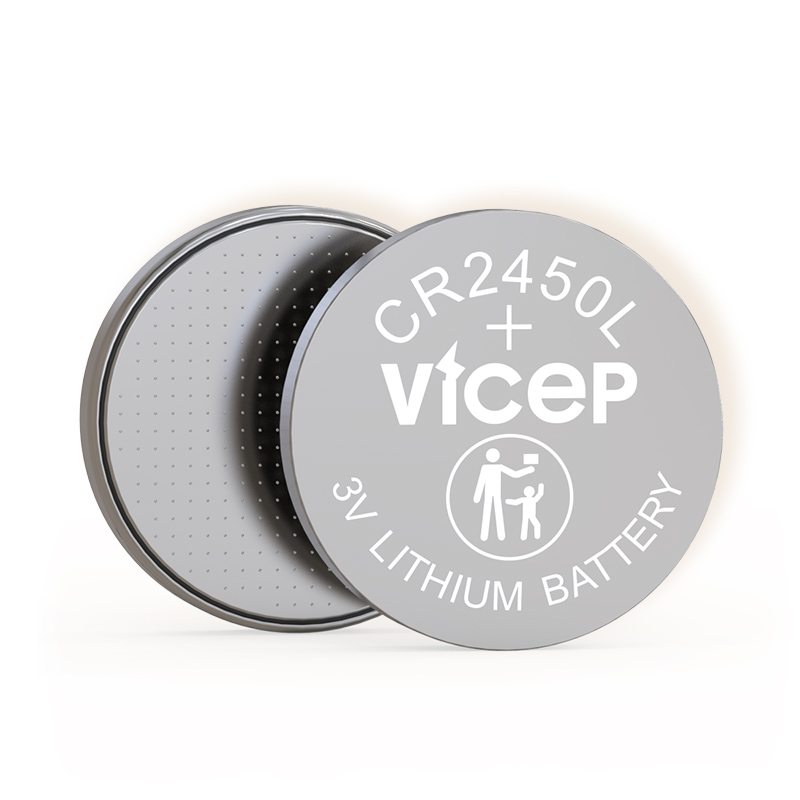

CR2450L |
Coin, 24.5mm | 6.8 g | 3.0 V | 580 mAh |
ViCep Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
